Dual Receiver

VP3-C0-xD13K-G

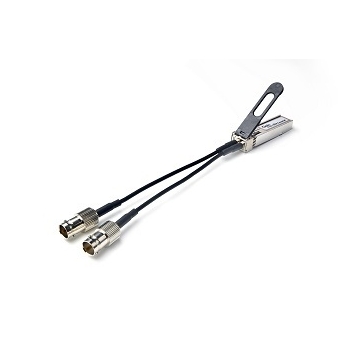

OptoMedia 3G-SDI electrical dual receiver SFP perfectly transmits SDI electrical signals up to ST-424 (3G), ST-292 (HD), and ST-259 (SD) and DVB-ASI over Belden 1694A cable via BNC, HD-BNC or DIN 1.0/2.3 connector. It handles 3Gbps pathological patterns.

FEATURES
SPECIFICATION

Supports ST-424, ST-292 and ST-259
BNC, HD-BNC or DIN 1.0/2.3 75Ω connectors
Compatible With DVB-ASI and AES10 (MADI)
Supports pathological patterns for 3G-SDI, HD-SDI and SD-SDI
Monitor function via serial interface
Available in MSA and Non-MSA pinouts

Parameter	Min	Typ	Max
Operating case temperature range (℃)	0		70
Storage temperature range(℃)	-40		85
ESD rating (HBM)		+/-5.5KV	+/-6KV
Power supply voltage (V)	3.13	3.3	3.465
Power consumption (mA)		165	220
