Dual Transmitter
Product
VP3-C0-xD13K-F

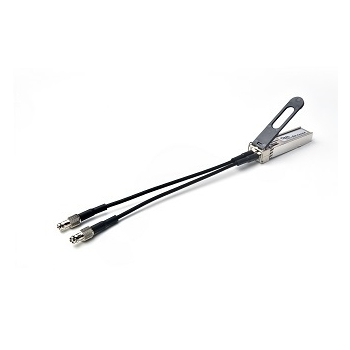

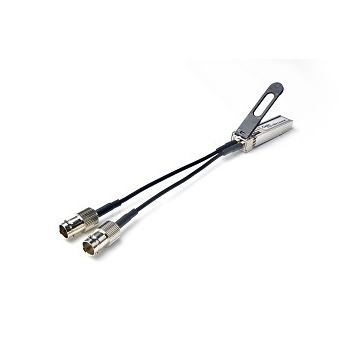

OptoMedia 3G-SDI electrical dual transmitter SFP perfectly transmits SDI electrical signals up to ST-424 (3G), ST-292 (HD), and ST-259 (SD) and DVB-ASI over Belden 1694A cable via BNC, HD-BNC or DIN 1 .0/2.3 connector. It handles 3Gbps pathological patterns.

  • 50-VPC-C0-6C43K-F(G.D)-325x233
  • 51-VPC-C0-8C43K-F(G.D)-325x233
  • Supports ST-424, ST-292 and ST-259
  • BNC, HD-BNC or DIN 1.0/2.3 75Ω connectors
  • Compatible With DVB-ASI and AES10 (MADI)
  • Supports pathological patterns for 3G-SDI, HD-SDI and SD-SDI
  • Monitor function via serial interface
  • Available in MSA and Non-MSA pinouts

Parameter Min Typ Max
Operating case temperature range (℃) 0   70
Storage temperature range(℃) -40   85
ESD rating (HBM)   +/-5.5KV +/-6KV
Power supply voltage (V) 3.13 3.3 3.465
Power consumption (mA)   165 220
