Dual Transmitter
Product
VPC-C0-xC53L-F

OptoMedia 12G-SDI electrical dual transmitter SFP perfectly transmits SDI electrical signals up to ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD), and ST-259 (SD) and DVB-ASI over Belden 1694A cable via BNC/ HD-BNC connector. It handles 12Gbps pathological patterns.

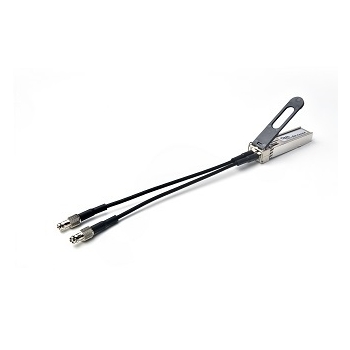

  • 50-VPC-C0-6C43K-F(G.D)-325x233

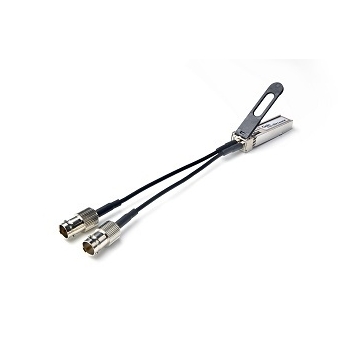

  • 51-VPC-C0-8C43K-F(G.D)-325x233
  • Supports ST-2082-1, ST-2081-1, ST-424, ST-292 and ST-259
  • BNC/ HD-BNC 75Ω connectors
  • Compatible With DVB-ASI and AES10 (MADI)
  • Supports pathological patterns for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SD-SDI
  • Monitor function via serial interface
  • Available in MSA and Non-MSA pinouts

Parameter Min Typ Max
Operating case temperature range (℃) -40   85
Storage temperature range(℃) -40   85
ESD rating (HBM)   +/-5.5KV +/-6KV
Power supply voltage (V) 3.13 3.3 3.465
Power consumption (mA)   165 220
