Single Receiver
Single Receiver

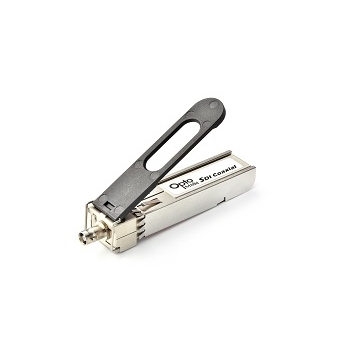

RMC-C0-xC73K-R
OptoMedia 12G-SDI electrical receiver SFP perfectly transmits
SDI electrical signals up to ST-2082-1 (12G), ST-2081-1 (6G),
ST-424 (3G), ST-292 (HD), and ST-259 (SD) and DVB-ASI over
Belden 1694A cable via BNC/ HD-BNC connector. It handles
12Gbps pathological patterns.
FEATURES
SPECIFICATION
Supports ST-2082-1, ST-2081-1, ST-424, ST-292 and ST-259
BNC / HD-BNC 75Ω connectors
Compatible With DVB-ASI and AES10 (MADI)
Supports pathological patterns for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SD-SDI
Monitor function via serial interface
Available in MSA and Non-MSA pinouts
Parameter
Min
Typ
Max
Operating case temperature range (℃)
0
70
Storage temperature range(℃)
-40
85
ESD rating (HBM)
+/-5.5KV
+/-6KV
Power supply voltage (V)
3.13
3.3
3.465
Power consumption (mA)
165
220
