Single Receiver
Product

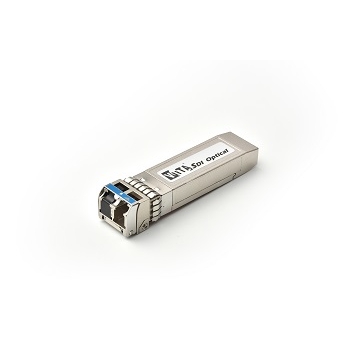

RMC-S1-x103K-R

OptoMedia 12G-SDI optical fiber receiver perfectly converts from optical signals to SDI electrical signal at SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M and DVB-ASI. It supports data rate 11.88Gbps and handles pathological patterns.

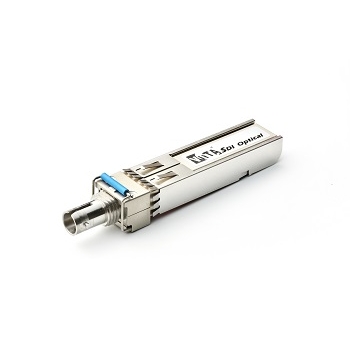

  • 42-RMC-S1-4103K-R
  • 2-RM3(C)-S1-3103K-T(R0)
  • Support transmission of SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
  • Handles pathological patterns for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
  • Digital diagnostics function
  • 10km over single mode fiber
  • Low power consumption- Typical 100 mA
  • Available in MSA and Non-MSA pinouts
  • LC and ST of connectors to choose from
  • Integrated Reclocker

Parameter Min Typ Max
Wavelength (nm) 1260   1620
Operating case temperature range (℃) 0   70
Storage temperature range(℃) -40   85
Power supply voltage (V) 3.1 3.3 3.5
Power consumption (mA)   180 200
