Single Transmitter

RMC-S1-x103K-T

OptoMedia 12G-SDI optical fiber transmitter SFP+ perfectly converts SDI electrical signals at SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M and DVB-ASI to optical signal. It supports data rate 11.88Gbps and handles pathological patterns.

FEATURES
SPECIFICATION

Support transmission of SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Handles pathological patterns for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
Digital diagnostics function
10km over single mode fiber
Low power consumption- Typical 135 mA
Available in MSA and Non-MSA pinouts

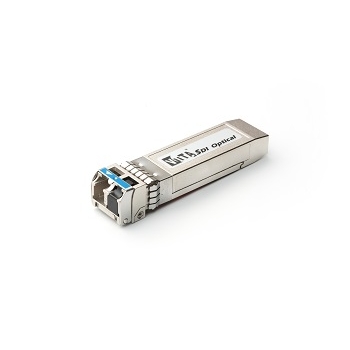

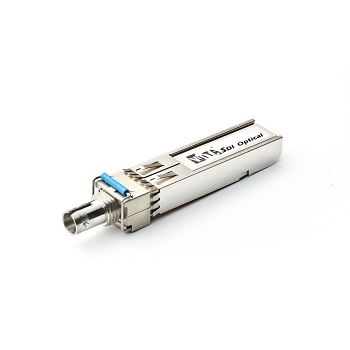

LC and ST of connectors to choose from
18ch CWDM wavelengths in option (1270~1610nm)

Parameter	Min	Typ	Max
Wavelength (nm)	1260	1310	1360
Operating case temperature range (℃)	0		70
Storage temperature range(℃)	-40		85
Power supply voltage (V)	3.1	3.3	3.5
Power consumption (mA)		135	150
