Dual Receiver
Dual Receiver

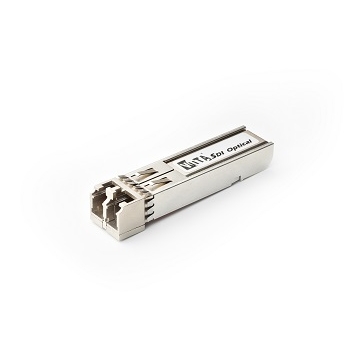

RM3-S1-4103K-G
OptoMedia 3G-SDI dual channel optical receiver SFP perfectly
converts 2 SDI electrical signals at SMPTE 424M,SMPTE 292M,
SMPTE 259M and DVB-ASI to optical signal. It supports data
rate 2.97Gbps and handles pathological patterns.
FEATURES
SPECIFICATION
Support 2ch transmission of SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Handles pathological patterns for 3G-SDI, HD-SDI and SD-SDI
Digital diagnostics function
10km over single mode fiber
Low power consumption- Typical 200 mA
Available in MSA and Non-MSA pinouts
Dual LC connector
Parameter
Min
Typ
Max
Wavelength (nm)
1260
1620
Operating case temperature range (℃)
0
70
Storage temperature range(℃)
-40
85
Power supply voltage (V)
3.1
3.3
3.5
Power consumption (mA)
200
300
