Single Transmitter
Single Transmitter

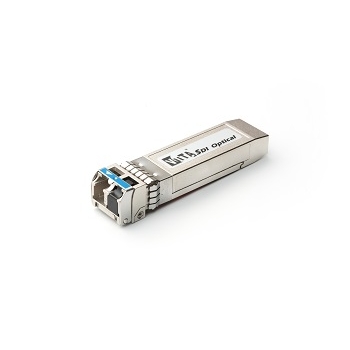

RM3-S1-x103K-T
OptoMedia 3G-SDI optical transmitter SFP perfectly converts
SDI electrical signals at SMPTE 424M, SMPTE 292M, SMPTE
259M and DVB-ASI to optical signal. It supports data rate
2.97Gbps and handles pathological patterns.
FEATURES
SPECIFICATION
Support SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Handles pathological patterns for 3G-SDI, HD-SDI and SD-SDI
Digital diagnostics function
10km over single mode fiber
Low power consumption- Typical 120 mA
Available in MSA and Non-MSA pinouts

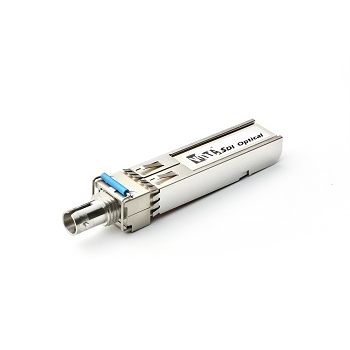

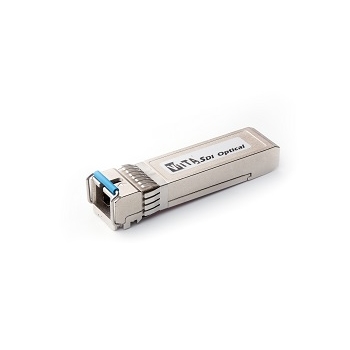

LC, ST, SC of connectors to choose from
18ch CWDM wavelengths in option (1270~1610nm, 40 & 80km)
Parameter
Min
Type
Max
Wavelength (nm)
1260
1310
1360
Operating case temperature range (℃)
0
70
Storage temperature range(℃)
-40
85
Power supply voltage (V)
3.1
3.3
3.5
Power consumption (mA)
120
200
